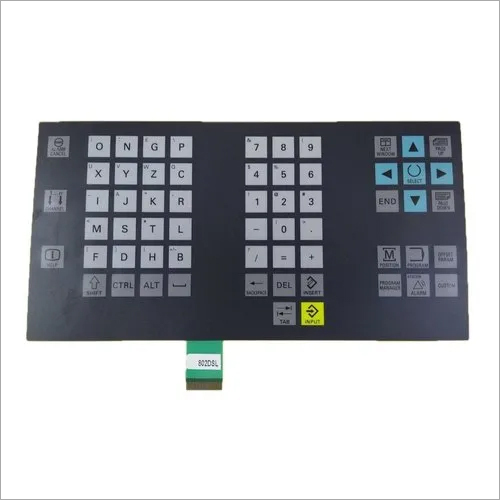

Membrane Keypad

Name: Membrane Keypad
Brand: Sun Tech Services
Price: 5750 INR
Availability: InStock

Price 5750 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Membrane Keypad Specification

Output
Electrical trigger/signals

Usage
Industrial

Features
Scratch-resistant surface, custom print/graphics, long lifespan

Sensors Specification
No sensors integrated

Input
Keypad matrix signals (customizable keys)

Interface
Flexible ribbon cable (tail), 8-way as shown

IP Rating
Up to IP65 (depending on sealing)

Components
Polyester top sheet, adhesive layers, printed circuit

Operating Temperature
-20C to +60C

Display Type
None (can integrate LED indication)

Power Source
External (from connected device or panel)

Thermal Conductivity
Low, suitable for standard electronics

Response Time
<50 ms per key press

Power Supply
Direct Current (DC)

Product Type
Membrane Keypad

Application
Industrial

Rated Voltage
Up to 24V DC

Supply Voltage
12V - 24V DC supported

Size
8.4 Inch

Dimension (L*W*H)
100 80 1 mm (as displayed, may vary)

Function
Tactile user interface for control panels and electronic devices

Color
Black

Weight
Approx. 10-20 grams (varies with size and design)

Current Rating
Up to 50 mA per key

Thickness
0.7 - 1.2 mm

Capacity
Multiple simultaneous key-press support

Frequency
N/A (mechanical input)

Operating Humidity
90% RH non-condensing

Contact Rating
Silver or carbon printed contacts

Backlight Option
Available (LED, EL optional)

Adhesive Type
Industrial pressure-sensitive adhesive backing

RoHS Compliance
Yes

Custom Printing
Supports logos, symbols, and multi-color graphics

Mounting Method
Adhesive mounting or panel cut-out fit

Graphic Overlay Material
Polyester or Polycarbonate

Tail Pitch
2.54 mm standard

Flame Retardant
Available on request

UV Resistant
Yes (customizable)

Switching Life
>1 million actuations per key

Connector Type
Female locking, male pin, ZIF available

Key Type
Momentary tactile keys

Membrane Keypad Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Membrane Keypad

Procure the celebrated Membrane Keypad featuring momentary tactile keys and blue-ribbon technology. With a switching life exceeding 1 million actuations per key, industrial-grade adhesive backing, and RoHS compliance, this keypad stands out for its superior durability. Available in customizable polyester or polycarbonate overlays, it supports custom graphics and multiple connector types, meeting diverse application demands. UV resistance, flame retardancy, and backlight options make this keypad incredibly versatile. Limited stock available-trending among India's industrial service providers seeking a premium, reliable user interface solution.

Advanced Features and Versatile Applications

The Membrane Keypad boasts a scratch-resistant, customizable surface with momentary tactile switching. Its superior silver or carbon contact rating ensures reliability, and the keypad supports multi-key pressing for complex operations. Optional LED or EL backlights and flame retardancy make it suitable for demanding environments. Ideal for integration into control panels and industrial devices, this keypad delivers longevity and precise tactile feedback, making it a trusted interface for distributors, service providers, and OEMs across various industries.

Certifications, Stock, and Supply Readiness

With supply ability to meet bulk requirements, our Membrane Keypads are RoHS certified and optionally flame retardant for safety. Handover and dispatching are efficient through India's top FOB ports, ensuring fast delivery. Stock is ready for immediate distribution, perfect for importers and suppliers seeking reliable, celebrated user interfaces. Secure your units as soon as possible, as trending demand and limited stock highlight the necessity to act fast for uninterrupted supply.

FAQ's of Membrane Keypad:

Q: How is the Membrane Keypad installed in control panels or devices?

A: The Membrane Keypad features an industrial pressure-sensitive adhesive backing for easy mounting directly onto flat surfaces. Alternatively, it can be fitted into panel cut-outs for a secure installation.

Q: What makes this Membrane Keypad superior to standard options?

A: This keypad offers a blue-ribbon switching life of over one million actuations per key, customizable overlays, RoHS compliance, and enhanced features such as backlighting, flame retardancy, UV resistance, and scratch protection.

Q: Where can I use the keypad for best performance?

A: The keypad is ideal for industrial environments, OEM assemblies, distributor solutions, and custom electronic devices-its robust design is suitable for humid, UV-exposed, or high-use situations.

Q: What is the process to customize graphics or connector types?

A: Provide your logo, symbols, or specific graphic requirements at order placement. You can also specify connector preferences, including female locking, male pin, or ZIF connectors, ensuring seamless integration.

Q: When can I expect dispatch if I order today?

A: With stock ready and efficient handover procedures at key Indian FOB ports, dispatching typically begins immediately after order confirmation, subject to quantity and customization requests.

Q: What are the benefits of the keypad's multi-key support and tactile interface?

A: The multi-key press support allows for flexible, simultaneous user input, while tactile feedback ensures accurate, fast, and reliable operation-essential for critical industrial and electronic applications.
